Headboard Design Options & Structural Feasibility
From vertical fluted panels and Chesterfield button-tufting to curved wingbacks and minimalist flat upholstery. Every design is built on validated E1/E0 structural frames, engineered for container-loading efficiency and repeat mass production.
Reference images represent technical construction archetypes. All bespoke profiles, pleat spacing, and wings require factory sample approval before batch PI sign-off.
Headboard Upholstery Archetypes
Each upholstery pattern has specific foam density, stitching tension, and packaging carton dimension dependencies.

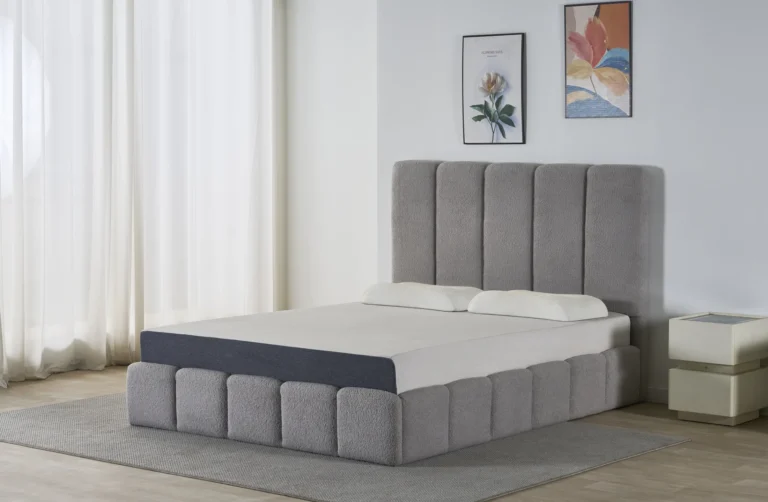

Vertical Fluted / Channel Paneling
Individual padded channels with high-resilience 28D-32D foam backing. Can be fabricated in a 2-piece Knock-Down (KD) split for 40HQ volume optimization.
Diamond Button-Tufted / Chesterfield
Traditional deep diamond buttoning or pull-point pleated indentations. Features structural plywood internal reinforcement to maintain tension across repeat cycles.

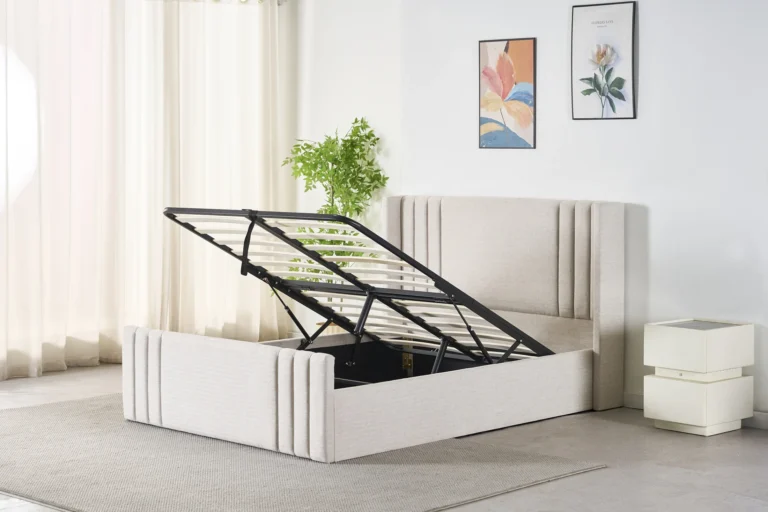

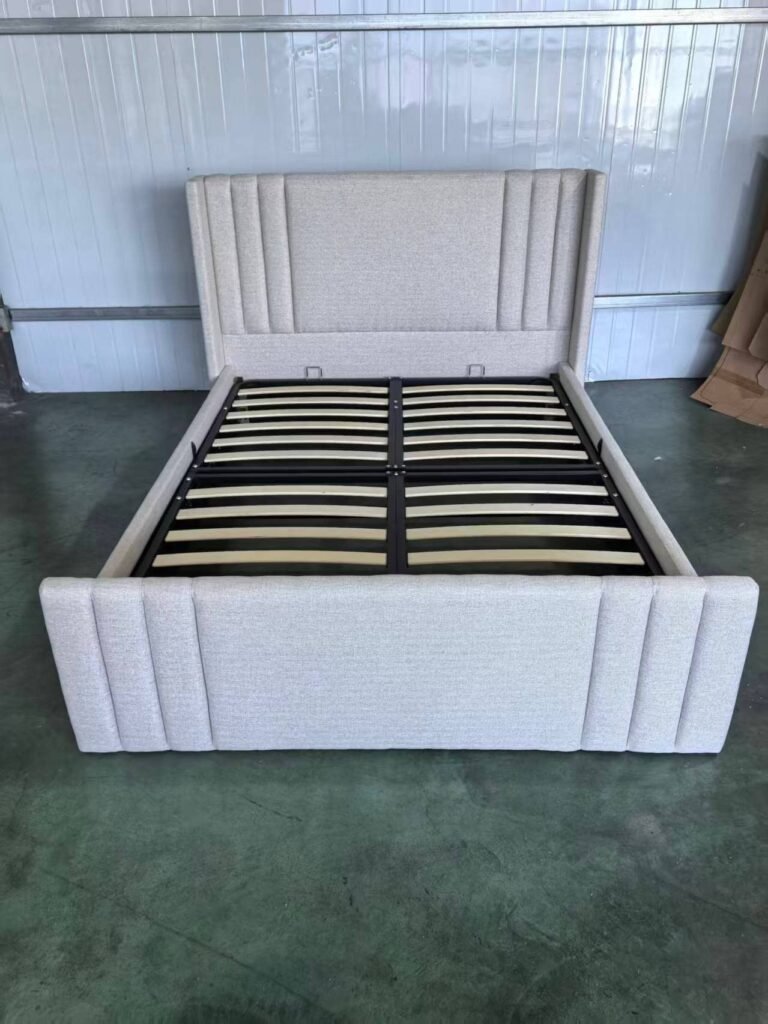

Curved Wingback & Ergonomic Contours
Side-flange wings with curved corner geometry. Wings utilize heavy-duty metal insert brackets with pre-aligned bolt holes for rigid KD assembly in destination homes.
Minimalist Plain / French Seam Border
Clean, low-profile modern look with optional double-needle edge piping or flange perimeter stitch. Maximizes container loading quantity and reduces total landed freight cost.
Structural Dimensions & Internal Build Matrix
Standard engineering guidelines ensuring mass production repeatability, structural rigidity, and compliance with overseas transit tests.
| Specification Area | Standard Configurable Range | OEM / ODM Custom Options | Transit & Assembly Impact |
|---|---|---|---|
| Headboard Total Height | 1000 mm – 1250 mm | 1300 mm – 1550 mm (Requires 2-part split) | >1300mm requires split-panel KD to fit 40HQ container interior height |
| Cushion Thickness | 70 mm – 110 mm (Standard foam layer) | 120 mm – 180 mm (Deep plush luxury padding) | Thicker profiles increase package CBM; affects 40HQ loading yield by 10-15% |
| Internal Frame Material | E1 Plywood + Solid Pine / Poplar internal ribs | E0 Plywood + Reinforced iron skeleton frame | Strict formaldehyde limits complied: EU REACH ≤0.062 mg/m³ standard |
| Foam Specification | 25D High-Density Comfort Sponge | 30D / 35D High-Resilience Fire Retardant Foam | Certified to UK BS 5852 Part 2 (Crib 5) or US CA TB117-2013 on demand |
| Rear Backing Panel | Black Non-Woven Dustproof Fabric | Matching Upholstery Self-Fabric or 600D Canvas | Self-fabric backing recommended for open-plan retail environments |
Fabric Tension & Tailoring Harmony
Different headboard geometry demands specific fabric elasticity and gram weight. Our upholstery workshop calibrates stitch margins and thread strength to prevent seam slippage or corner bunching.
Ideal for organic curved wings and wide horizontal channel panels. The heavy weight masks seam junctions naturally.
Best for deep Chesterfield tufting and sharp geometric lines. High tensile strength withstands tight button cord anchoring.
Optimized for minimalist box frames and piped flange borders. Clean, tailored look popular in UK and European markets.
Reinforced nylon bonded thread for high load resistance.
Factory-aligned metal mounting hardware for swift assembly.
Customization Paths, MOQ & Production Lead Times
We distinguish between Configurable Modifications on proven chassis versus Complex OEM-ODM New Developments to protect your launch timeline and budget.
Configurable Headboard Adjustments
Adjusting fabric collections, fabric colourways, standard headboard heights (±100mm), or standard stitch layouts on an established DIKAPABED production mold.
- Standard Production Lead Time: 30 Days
- Physical Swatch Confirmation: 3 - 5 Days
- Minimum Order Quantity: 30 - 50 sets / model
- Sample Requirement: Fabric Swatches / Full Bed (Optional)
Complex Custom / OEM-ODM Development
Developing novel 3D curvatures, integrated LED channels, bespoke wingback profiles, or metal inlay patterns from customer CAD drawings or reference renderings.
- Mass Production Lead Time: 45 Days (Post-approval)
- 1st Physical Prototype Sampling: 7 - 14 Days
- Typical Project MOQ: 1 × 40HQ Container Baseline
- Sample Requirement: Mandatory Golden Sample Sign-off
Related Bed Frame Platforms
Explore Core Customization Categories
Velvet, boucle, linen, chenille swatches.
Heavy-duty pistons & bottom board options.
Curved birch slats & fully KD iron bases.
Solid wood, electroplated metal & heights.
Ready to Configure Your Headboard Collection?
Send your target market, sales channel, reference model, and requested headboard customization. We will return a specification-led quotation, container loading plan, and sample timeline.
Standard Turnaround: Quote response within 24 business hours • FOB Shenzhen/Guangzhou
