Gas Lift Storage Bed Buying Guide
An engineering and commercial resource for overseas furniture importers, retail buyers, and private-label brands. Master mechanism Newton ratings, structural load limits, container CBM efficiency, and commercial defect prevention before placing production POs.

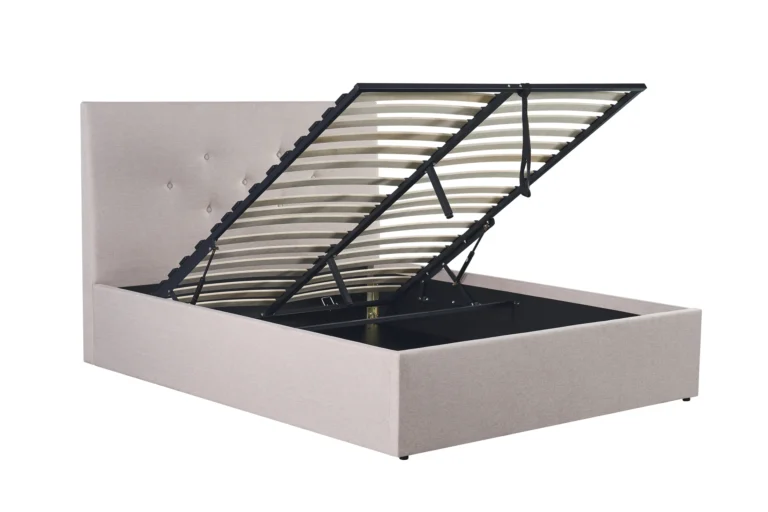

Heavy-duty hydraulic pistons with cold-rolled steel bracket & synchronized safety stops.
UK Ottoman Bed vs. Global Gas Lift Bed
Understanding local retail terminology and structural expectations prevents communication friction and catalogue misalignment across different import jurisdictions.
The UK Ottoman Paradigm
- ▸ Origin & Definition: Derived historically from cushioned low storage chests; in UK retail, virtually all lift-up underbed storage models are sold under the generic term "Ottoman Bed".
- ▸ Structural Types: Encompasses both wooden/upholstered 2-piece pre-assembled divan bases and modern flat-pack Knock-Down (KD) metal frame upholstered beds.
- ▸ Opening Mechanics: High consumer demand for both Foot-End Lift (standard master bedrooms) and Side-Lift configurations (small box rooms and alcoves).
- ▸ Compliance: Mandatory compliance with BS 5852 / Furniture and Furnishings (Fire) (Safety) Regulations for domestic foam and fabric coverings.
The International Specification
- ▸ Technical Labeling: Identified universally in customs declarations, freight manifests, and technical RFQs as "Hydraulic / Gas Lift Storage Bed".
- ▸ Structural Format: Exclusively flat-pack KD format engineered to fit inside 2 cartons (under 0.25 CBM) for optimized 40HQ ocean container loading (180-240 sets).
- ▸ Bottom Floor Types: Heavy preference for woven dust-sheet Velcro bases or drop-in MDF boards depending on local flooring dampness standards.
- ▸ Compliance Focus: General Product Safety Regulation (GPSR), REACH Formaldehyde limits (0.062 mg/m³), and standard mechanical safety EN 1725.
How the Gas Lift Engineering System Operates
The gas lift bed functions as a counterbalanced lever system. High-pressure nitrogen gas cylinders provide lifting assist to counteract the combined deadweight of the steel slat frame, wood slats, and heavy retail mattress.
Gas Strut Pistons
Hermetically sealed steel cylinders charged with inert nitrogen gas and hydraulic damping oil. Piston force ratings (600N to 1200N per side) are precisely calibrated to match target mattress weights.
Scissor Pivot Hinge
Multi-link heavy gauge cold-rolled steel bracket bolted directly to the headboard/side rail frame. Governs the lifting geometry, elevation clearance angle (typically 42°-48°), and structural arc.
Opening Direction
End-Lift: Standard front-pull mechanism from footboard.
Side-Lift: Side-mounted reversible hinge configuration designed specifically for asymmetric compact room layouts.
Perimeter Bed Base
Internal storage containment. Floor-level dust prevention utilizing heavy non-woven fabric with full perimeter Velcro, or elevated drop-in 5mm/9mm E1 MDF bottom panels for rigid heavy load support.
6 Technical Checkpoints Buyers Must Verify
Over 90% of post-sale customer returns on gas lift beds result from uncalibrated Newton force, hinge bracket flex, or mattress slippage. Audit these parameters prior to PI confirmation.
Gas Strut Newton Calibration
If Newton force is too weak, the bed will not stay open; if too strong, the consumer cannot pull it closed or the frame springs upward violently without a mattress.
Mattress Weight Range Matching
B2B specification sheets must specify the target mattress weight envelope (e.g., 25kg to 45kg). Heavy pocket spring or hybrid mattresses require upgraded piston ratings.
Dynamic & Static Load Capacity
Storage beds carry dual loads: the resting sleeper weight on top (EN 1725 standard: 250kg-300kg) plus the internal storage contents inside the base compartment (up to 100kg).
Side Rail Structural Integrity
During lifting, horizontal torque pulls side rails inward. Factory must integrate internal steel angle brackets and multi-ply E1 plywood reinforcement plates at pivot bolting points.
Slat System & Retainer Loop
Curved poplar/birch sprung wood slats absorb movement. A steel headboard mattress retainer bar prevents the mattress from sliding backward into the headboard recess when tilted open.
Base Material & Pull Strap
A high-tensile reinforced woven nylon pull strap must be securely fastened to the steel sub-frame (not just the fabric cover). Select bottom fabric vs drop-in wood board based on market landed price.
Engineered for Flat-Pack KD Export & E-Commerce Drop-Ship
Freight landed cost and last-mile transit damage dictate e-commerce profitability. Gas lift bed frames require strategic carton partitioning to maintain carton gross weights below carrier limits (under 30kg where possible) while safeguarding delicate hydraulic pistons.
Standard 2-Box Export Partitioning
Box 1: Upholstered Headboard + Hardware blister pack + Gas pistons + Manual.
Box 2: Side Rails + Footboard + Knock-Down Steel Slat Frame + Wood Slats.
ISTA 3A / Mail-Order Drop-Ship Protection
Reinforced 5-layer / 7-layer double corrugated export cartons with high-density EPS foam edge protectors, corner caps, and plastic strapping to withstand courier sorting conveyor impacts.
Hardware & Assembly Standardization
Pre-sorted blister hardware packs with localized multilingual assembly manuals (EN/DE/FR/NL) and step-by-step video QR codes to reduce assembly-related consumer support tickets.
Container Loading Estimation 40HQ Standard
Realistic container volume estimations based on 2-carton flat-pack upholstered storage beds:
| Bed Size | Total CBM | Qty (40HQ) | Carton Configuration |
|---|---|---|---|
| Single (90×190) | ~0.18 m³ | ~360 Sets | 2 Cartons / Set |
| Double (135×190) | ~0.25 m³ | ~260 Sets | 2 Cartons / Set |
| King (150×200) | ~0.29 m³ | ~220 Sets | 2 Cartons / Set |
| Super King (180×200) | ~0.34 m³ | ~190 Sets | 2-3 Cartons / Set |
How to Select the Right Model for Your Channel
Match your retail distribution model and customer price elasticity with the appropriate bed frame architecture.
Online Retail & Drop-Ship
Prioritizes minimum packaging volume, lightweight KD steel construction, and simplified consumer self-assembly.
- Headboard Profile: Slim Panel / Channel (<90cm H)
- Storage Base: Non-Woven Fabric Bottom
- Fabric Choice: Linen-look / Velvet / Boucle
- Carton Packaging: 2 Boxes (Mail-Order 5-ply)
Independent Retail & Showrooms
Balances strong visual floor presence, plush upholstery hand-feel, and robust structural durability for display.
- Headboard Profile: Tall Tufted / Wingback (>115cm H)
- Storage Base: Dual Floor Board (MDF / Velcro)
- Fabric Choice: Heavy Chenille / Corduroy / PU
- Mechanism Force: 900N - 1100N Heavy Duty
Hospitality & Build-to-Rent (BTR)
Demands strict contract fire certifications (Crib 5 / BS 7177), reinforced steel chassis, and wipe-clean fabrics.
- Headboard Profile: Low Profile / Wall-Mounted Option
- Fire Standards: BS 5852 Source 5 / TB117
- Base System: Rigid MDF Board with Metal Lip
- Opening: Front or Side-Lift Option
Featured Gas Lift Bed Platforms
Sample tested platforms ready for configurable customization (fabric, leg height, slat system, and packaging).
Curved Double-Cushion Gas Lift Storage Bed
Validated production platform with certified gas strut pistons, reinforced steel hinge pivots, and customizable upholstery fabrics.
Rounded-Channel Gas Lift Storage Bed
Validated production platform with certified gas strut pistons, reinforced steel hinge pivots, and customizable upholstery fabrics.
Extra-Tall Panel Upholstered Bed Frame
Validated production platform with certified gas strut pistons, reinforced steel hinge pivots, and customizable upholstery fabrics.
Frequently Asked Questions
Key technical and commercial answers regarding gas strut reliability, mixed container feasibility, and sample validation.
Need a custom technical review?
Our engineering team can evaluate custom drawings, non-standard frame dimensions, and specific hydraulic requirements.
Submit Drawing for Feasibility Review →What is the difference between an Ottoman Bed and a Gas Lift Bed? ▼
How does the gas lift mechanism work safely? ▼
What mattress weight is suitable for standard gas lift beds? ▼
Can the lift opening direction be configured (Side-Lift vs. End-Lift)? ▼
How are gas lift beds packed for container export and courier drop-ship? ▼
